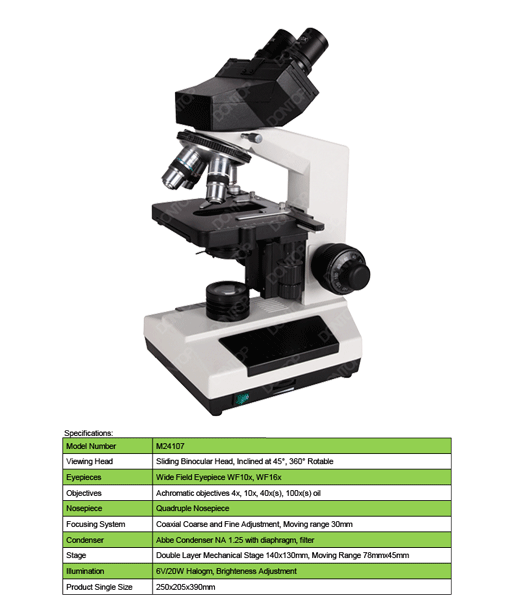

| 产品名称: M24107 | | | Sliding Binocular Head |  | | |  | |
| Specifications: |
|
| Model Number |
M24107 |
| Viewing Head |
Sliding Binocular Head, Inclined at 45°, 360° Rotable |
| Eyepieces |
Wide Field Eyepiece WF10x, WF16x |
| Objectives |
Achromatic objectives 4x, 10x, 40x(s), 100x(s) oil |
| Nosepiece |
Quadruple Nosepiece |
| Focusing System |
Coaxial Coarse and Fine Adjustment, Moving range 30mm |
| Condenser |
Abbe Condenser NA 1.25 with diaphragm, filter |
| Stage |
Double Layer Mechanical Stage 140x130mm, Moving Range 78mmx45mm |
| Illumination |
6V/20W Halogm, Brighteness Adjustment |
| Product Single Size |
250x205x390mm | | | |  |
|
|
| |
|
|
| |
|
|
